Name: Spring pendulum VT-4523
Brand: Vibratec
SKU: VT-4523

Spring pendulum VT-4523

Vibratec VT-4523-series is a vibration isolator with a single working all metal telescopic mount with spring made of high tensile steel. Scroll in aluminum and housing in zinc plated steel. Scroll in aluminum and housing in zinc plated steel.

Characteristics

Mounts with low natural frequency, 5-6 Hz, depending on preload.
Accepts both static and dynamic tension forces.
Maximum excitation: ± 1 mm.
Mechanical strength: 2 g.
Amplification factor: < 5.
Temperature range: -90°C to +300°C

Applications

Isolation of exhaust-, air- water- and steam-pipes.
Isolation of fans, ventilation and cooling aggregates.
Stabilization of frames and equipment on vessels, ships and vehicles.

Reference VT-4523

Characteristics

Type: Hanger
Pendlar
Maximum excitation amplitude: ± 1 mm
Amplification factor: < 5
Recommended temp. range: -90°C to +300°C
Natural frequency: 5 - 6 Hz
Mechanical strength: 2 g

Vibratec Spring Pendulum VT-4523 : vt-4523-en-1.pdf | Datasheet

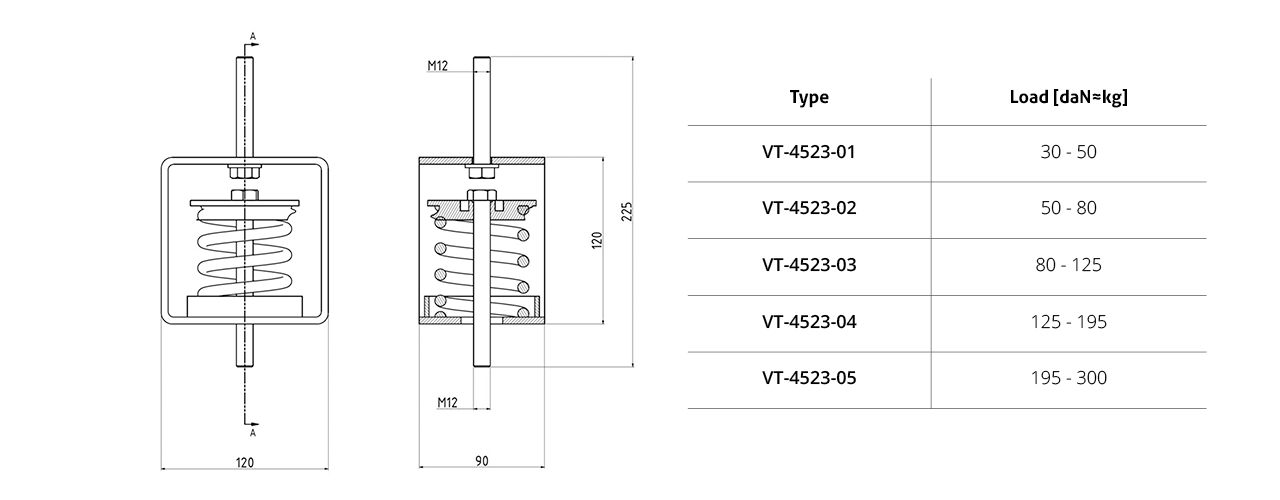

Spring Isolator VT-4523 technical drawing
